BC400P

THE COLOUR EXPERTS

Over the past decades we have developed expert knowledge in colour printing with our multifunctional printers and we are pleased to expand the colour portfolio to our labelling solutions.
Our colour specialists around the globe offer highest colour matching expertise and can develop the perfect fit for your colour labelling requirements.

FLEXIBLE LABELLING

Our digital colour labelling enables a new level of versatility when it comes to meeting the requirements of printing variable content.

JUST-IN-TIME PRODUCTION

The BC400P delivers the perfect labelling fit for just-in-time productions and short-run manufacturing. Produce the exact quantities you require at any time with the flexibility to change information on the label whenever needed.

DURABLE PERFORMANCE & HIGH QUALITY

With its clever design the BC400P easily produces full colour labels with a speed of up to 300 mm/second and a constant colour reproduction throughout the whole print job. To achieve the highest quality standards the fixed line print head with 1200 dpi ensures consistent colour image quality.

INDUSTRIAL COLOUR PRINTING

Pigment ink based labelling enables the most reliable colour printing results. Combined with the correct substrate such as gloss and matte paper or PP the labels can endure the harshest environments and last longer.

Advantages of pigment ink

• Higher colour stability and longer lasting print results.
• Resistant to fading when exposed to UV light (sunlight).
• Super high smudge resistant and weather resistant.

SPECIFICATIONS

Type	Desktop colour label printer
Resolution	1,200 x 600 dpi, 1,200 x 1,200 dpi
Weight	25.5 kg (with print heads and ink tanks)
Standard Connectivity	USB 2.0 Hi-speed, LAN 10/100 /1000 Base, IPv6, RS232C (barcode reader connection), RS232C (external device connection)
User Interface	8x LED, 4x key

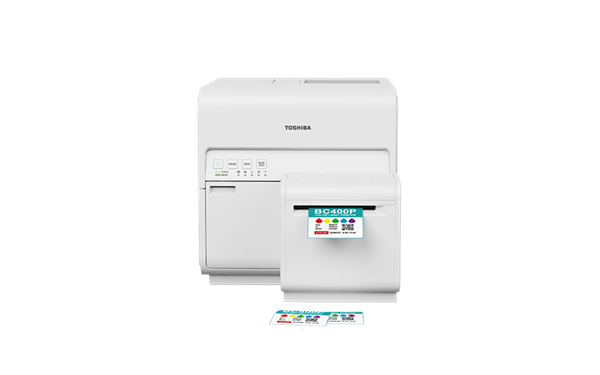

Options	Automatic rotary cutter
Maximum Speed	11.8 ips (300 mm/sec)
Dimensions (W x D x H)	(W x D x H) 386 x 570 x 394 mm
Max. Print Length	3 - 497mm
Max Print Width	106.3mm
Media width	25.4 – 120mm
Label length	6.0 – 500mm
Ink tanks	Water-based pigment ink
Ink cartridge set	(Black, Cyan, Magenta, Yellow, 240ml each). (105ml each with new printer).
Print method	4x thermal line inkjet heads (Black, Cyan, Magenta, Yellow)
